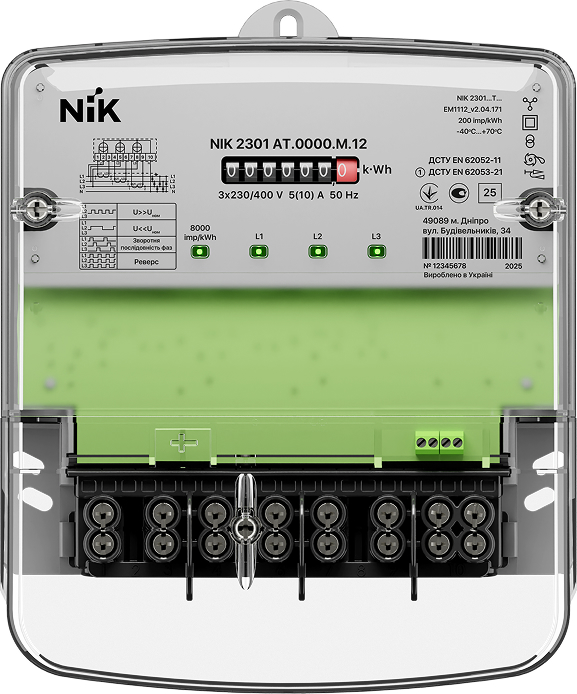

NIK 2301

General properties:

Metering of active energy in three-phase in three-wire and four-wire circuits of alternating current with transfer and/or direct connection to voltage and current.
Grade of accuracy of active energy metering according to the DSTU EN 62053-21 – 1,0
Grade of accuracy of active energy metering according to the DSTU EN 50470-1 and DSTU EN 50470-3-В
Nominal voltage 3x220 / 380 V, 3x230 / 400 V, 3x240 / 416 V, 3х127 / 220 V or 3х57,7 / 100 (depending on performance)
Frequency - 50 Hz
Nominal electric current intensity – 5A
Max electric current intensity - 10 А, 60 А or 120 А (depending on performance)
Ingress protection rating - ІР54
Availability of pulsed output
Number of digits of counting mechanism - 6+1
For multiple-tariff performance: to 4 tariffs and 12 time zones with automatic transition to standard time from daylight saving time
Calibration interval – 10 years

Advantages:

Extended range of operating voltage from -20% to + 15% of nominal voltage
Increased ingress protection rating against constant and variable magnetic fields (CSU-N MFE 40.1.35.110:2005)
Technology storage according to the grade of accuracy – not less than 50%
Low power consumption
Transparent shell
Solid housing
Installability of transparent terminal cover
Indication of magnetic field effect with induction value more than 100mt (depending on performance)

Таблиця виконань

* To get more information about different designs of the equipment, please, refer to the service manual
