For households and commercial use, for placement of devices for distribution,
protection and management of electric networks
Minimalistic design for households and commercial premises

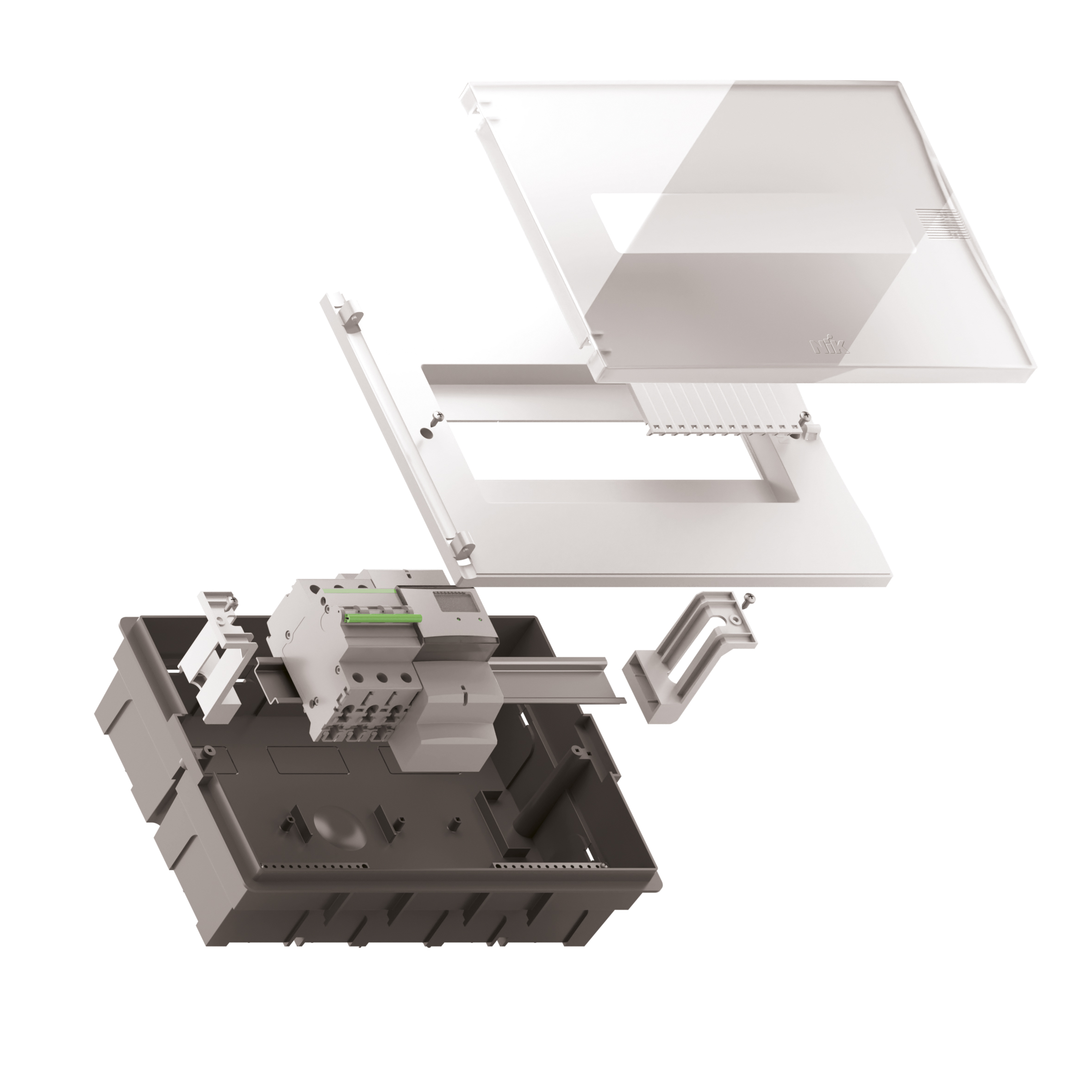

Easy-to-remove chassis
Ability to install modular devices and connect them outside the box
The box housing does not support combustion and is resistant to the effects of elements
heated to 650 ° C as a result of a short circuit.

Material:	Polycarbonate
Shield mounting method	Built-in
Number of modules	12 and 24
Degree of dust and moisture protection (in the closed state)	IP40
Insulation class -	II
Pre-perforated holes in the body of the shield for cables and wires	Top, bottom, back and sides
Separate terminal blocks	N and PE conductors
Chassis	Removable
DIN-rail	Removable
DIN-rail material	Polycarbonate based plastic
or metal
Door type	Translucent smoky or opaque
Color of the front panel	RAL 9010

Dimensions height×width×depth	Number of modules width = 18 mm	Rated amperage
310х220х106 mm	12	up to 63 А
310х346х106 mm	24	up to 100 А
