NIK 2300

Main properties:

Active + reactive energy
Transparent case (non-removable option)
4 tariffs / 12 zones
Optical port
Indicators of magnetic and electromagnetic fields
Mechanical intervention sensors
Battery mode
Instantaneous values of power, voltage, current
The "RESET" button with parameterization
Two batteries
RCI with vector diagram and OBIS codes
Data protection with encryption
Remote software change
DIN43857 and BS7856 standards pads
Control of voltage quality with measurement of voltage harmonics

Advantages

Extended range of operating voltage from -20% to + 15% of nominal voltage
Increased ingress protection rating against constant and variable magnetic fields (CSU-N MFE 40.1.35.110:2005)
Technology storage according to the grade of accuracy – not less than 50%
Continuous operation, where U = 380V (up to 24 hours without sacrificing the grade of accuracy)
Low power consumption
Transparent shell
Solid housing or with opening sensor
Installability of transparent terminal cover
In the absence of terminal voltage of meter, the meter is able to work in display mode due to the battery in order to take meter readings (for multi-tariff performance)
Indication of magnetic field effect with voltage more than 10 V/m within the frequency range 80-2000 MHz
Additional service functions: indication of current reverse direction (reverse), misconnections, lowered and overestimated phase voltage
Installability of outsourced interface module RS-485 for remote readout, programming of meters and their application in the automated meter reading and control system.

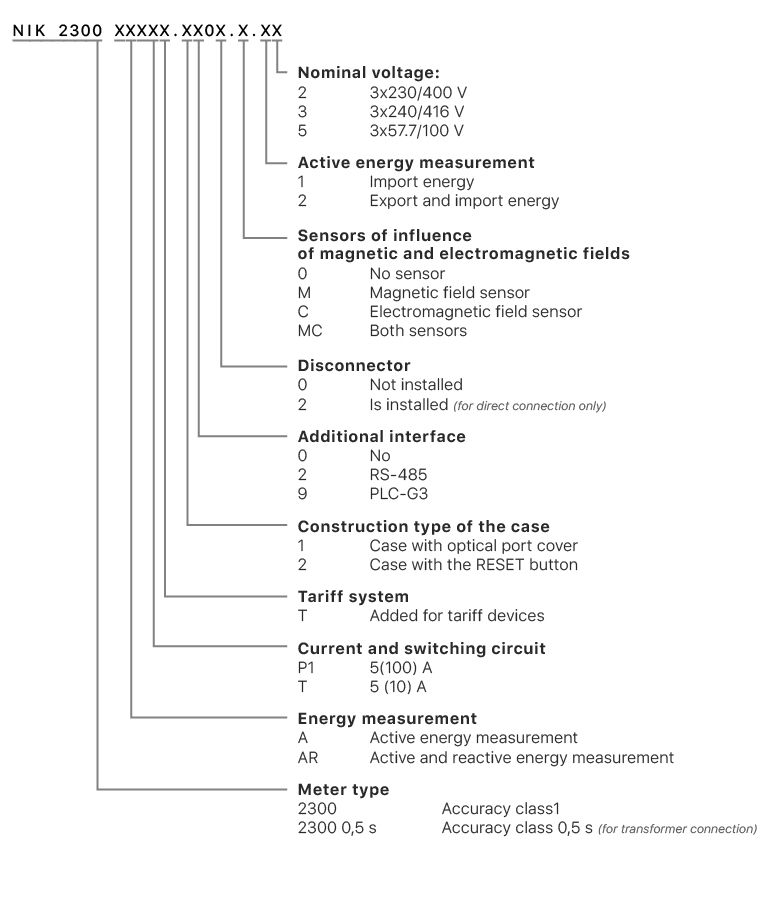

Table of Configurations

Dimensions

* To get more information about different designs of the equipment, please, refer to the service manual
or call to our support center by telephone +380 44 383-95-75
